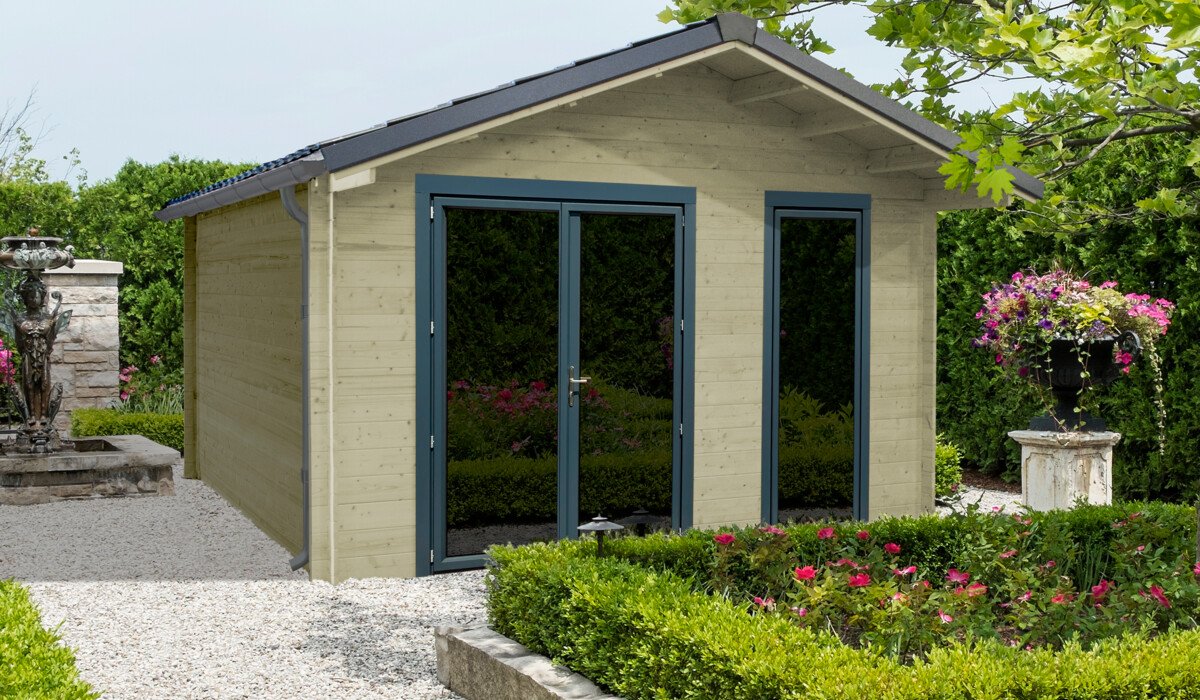

Dimensions: 4,18 x 2,98 m | Surface area: 12,46 m² | Aluminium door (RAL 7016 - 1.66 x 2.065 m) and fixed window (RAL 7016 - 0,73 x 2,065 m) with double glazing | Tongue and groove profiles in pinewood | Class III impregnation | Door handle (titanium finish) with three-point cylinder lock | Metallic roof tile plates (RAL 7016) | Zinc-magnesium gutters with drainage pipes | Water barrier band | Metallic fixing kit
|

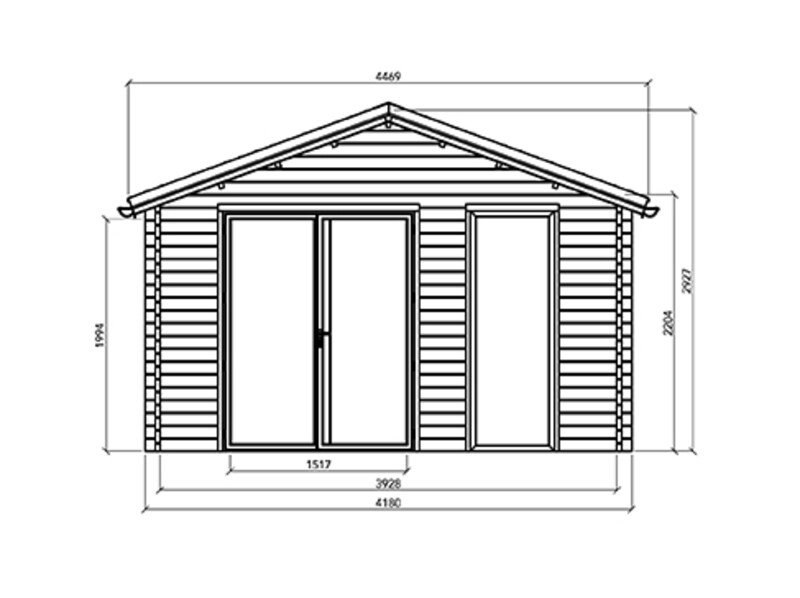

External dimensions and surface area: |
4,18 x 2,98 m |
|

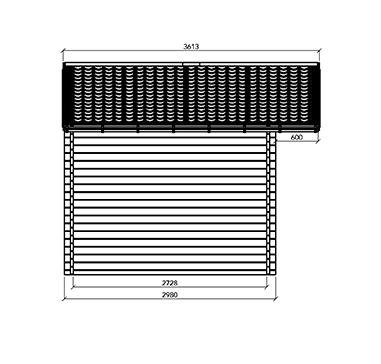

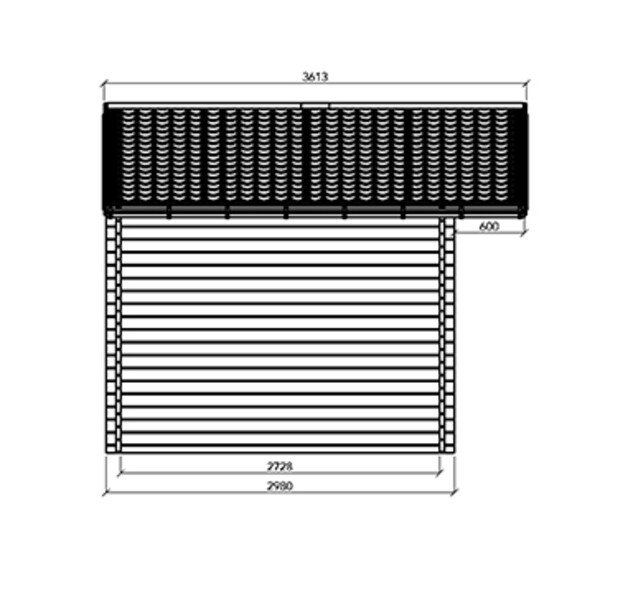

External dimensions and surface area with roof overhang: |
4,43 x 3,63 m |
|
Interior dimensions and surface area: |
3,93 x 2,73 m |
|
Dimensions double door (L/H): |
1,66 x 2,065 m |
|
Dimensions fixed window (L/H): |
0,73 x 2,065 m |
|
Ridge height: |
2,93 m |
|
Wall height: |
2,22 m |
|
Wall thickness: |
40 mm |
|
Thickness roof planks: |
19 mm |
|
Roof slope: |
20° |
|
Roof surface: |
16 m² |
|
Paintable surface: |
± 30 m² |
|
Snow load: |
75 kg/m² |
|
Permanent load: |
30 kg/m² |
4,18 x 2,98 | 12,46 m2
40 mm
